Nutrient Recovery from Digestate


BKT's FMX technology is a unique anti-fouling membrane filtration system that separates the most challenging high solid, high density and high viscosity digestate to recover valuable nutrients and transform "waste" into a profitable resource for our clients.

do not drink.gif

Key benefits of FMX:

  • Foulng prevention mechanism
  • High nutrient recovery rates
  • Small footprint

    Digestate is difficult to treat mainly because it is a high solid effluent stream from anaerobic digestion. Since the carbon sources are already converted into methane gas, it is also difficult to treat biologically because it would require significant external carbon sources.

    But digestate contains abundant sources of nitrogen and phosphorus, so a fouling-preventive membrane filtration system like FMX can recover these nutrients effectively and efficiently.

    Nitrogen Recovery

    Nitrogen in digestate can be converted into liquid fertilizer when properly concentrated. FMX can remove high solids from digestate without fouling, performing a critical pretreatment for RO (Reverse Osmosis) to concentrate nitrogen or ammonia for fertilizer.

    FMX’s capability to separate liquids and solids from digestate can then allow RO to work as a final step in nutrient recovery.

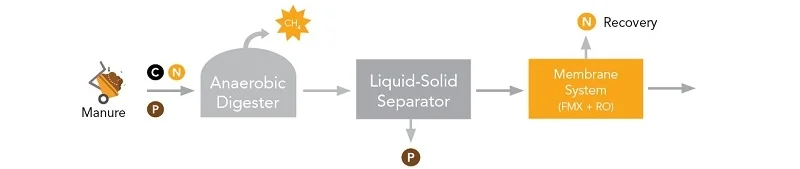

    digestate option1.jpg

    Phosphorus Recovery

    Phosphorus is one of the important nutrients for the crop grow, but if it is over the limit, then algal bloom can happen. Digestate or livestock manure is one of the main sources of the phosphorus pollution. Phosphorus, however, exists mostly in particulate form, so it can be removed or recovered as a solid. Problem is again how to recover the particulate phosphorus effectively. FMX has done a test to recover the phosphorus from hog manure, and it turned out to recover almost 100% of particulate phosphorus.


    increased Biogas Production

      In addition to nitrogen recovery, we can return the concentrate from FMX to the anaerobic digester to boost the efficiency of the digester.

      Hydromantis, along with the collaboration with Tetra Tech, has done a study about this methane gas increase, using one of our reference sites in the Netherlands. The result was an impressive 25% increase in biogas production.

      AAD performance.jpg

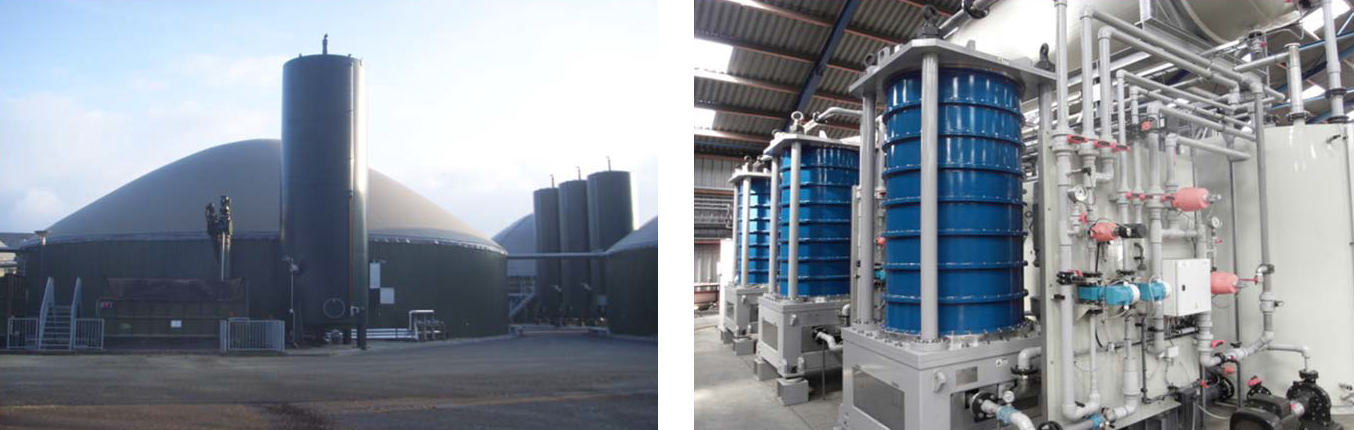

       T’Haantje BGP | Netherland

      A 6 megawatt anaerobic digester in the Netherlands installed 3 FMX units for the
      treatment of digestate. Prior to FMX, the facility had a tubular membrane system
      installed, but due to the difficult characteristics of the digestate, the tubular system was
      fouled beyond recovery within 3 months.

      The first full scale industrial installation of its kind, the FMX has been proven to
      effectively and reliably treat digestate. At this installation the FMX is used as a
      pretreatment to remove suspended solids prior to a spiral RO system. The RO can then
      be used to provide clean water for reuse onsite, while concentrating the nutrients for
      sale as a fertilizer.

      Not only does FMX provide a reliable and consistent RO pretreatment, but the
      concentrated biomass from the FMX can be returned to the digester. By returning the
      FMX concentrate, the biogas facility has reported up to a 20% increase in biogas
      production. In addition, the returned biomass helps maintain a more stable digester,
      decreasing operational downtime of the whole operation.

       Full Scale Digestate Treatment with Nutrient Recovery

      Full Scale Digestate Treatment with Nutrient Recovery

      Dairy Farm Digestate (Modesto)

      Client: Dairy Facility, U.S.A
      Goal: Concentrate humic and fulvic acid
      Membrane: NF
      Average Flux: 52  liter / (m2 • hr)  [21 GFD]
      Note: 300 mesh screen pretreatment

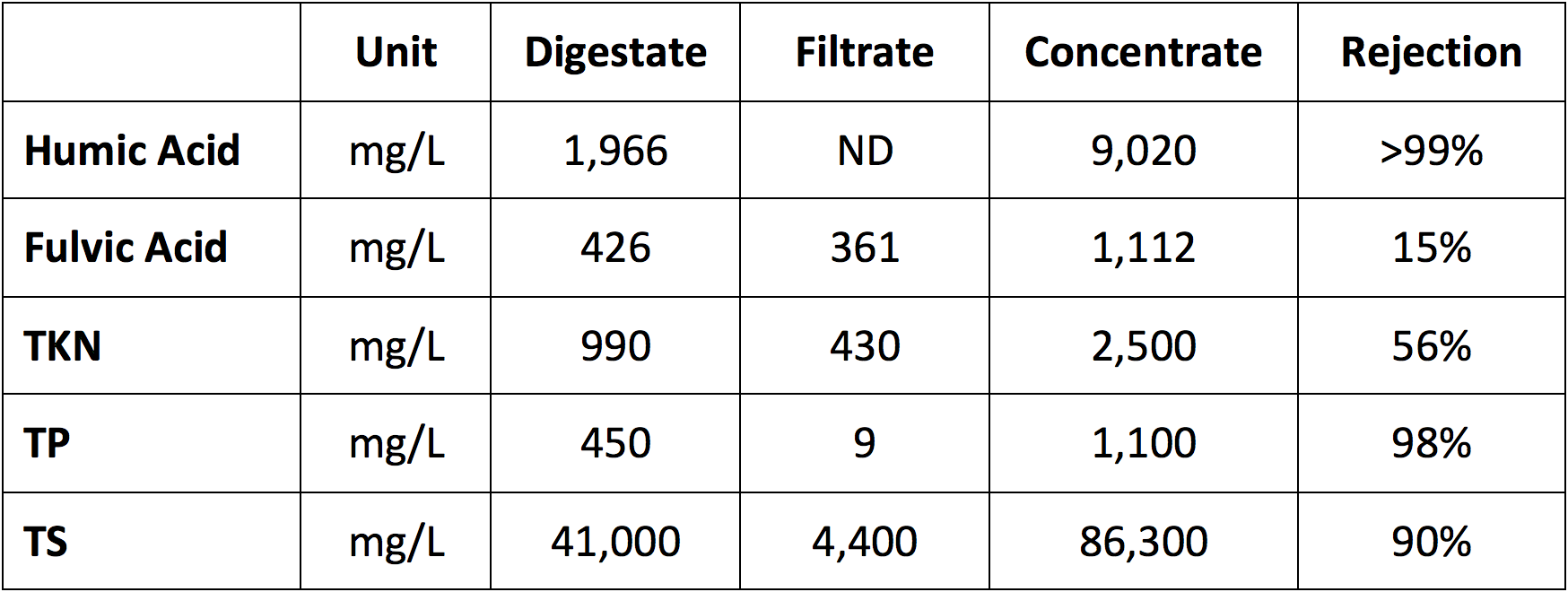

        Digestate: Filtrate (a) and Feed (b)

      Digestate: Filtrate (a) and Feed (b)

      Modesto Dairy Digestate Right.png

      Hog Farm Digestate (Ringler Farm)

      Client: Biogas Plant, U.S.A.
      Goal: Treatment of anaerobic digestate while concentrating valuable by products
                Reduce/eliminate tipping fee for digestate effluent
      Membrane: UF
      Average Flux: 19.3  liter / (m2 • hr)  [11.4 GFD]
      Note: Pretreatment process included a 400 micron vibrating screen followed by 890 micron screw press

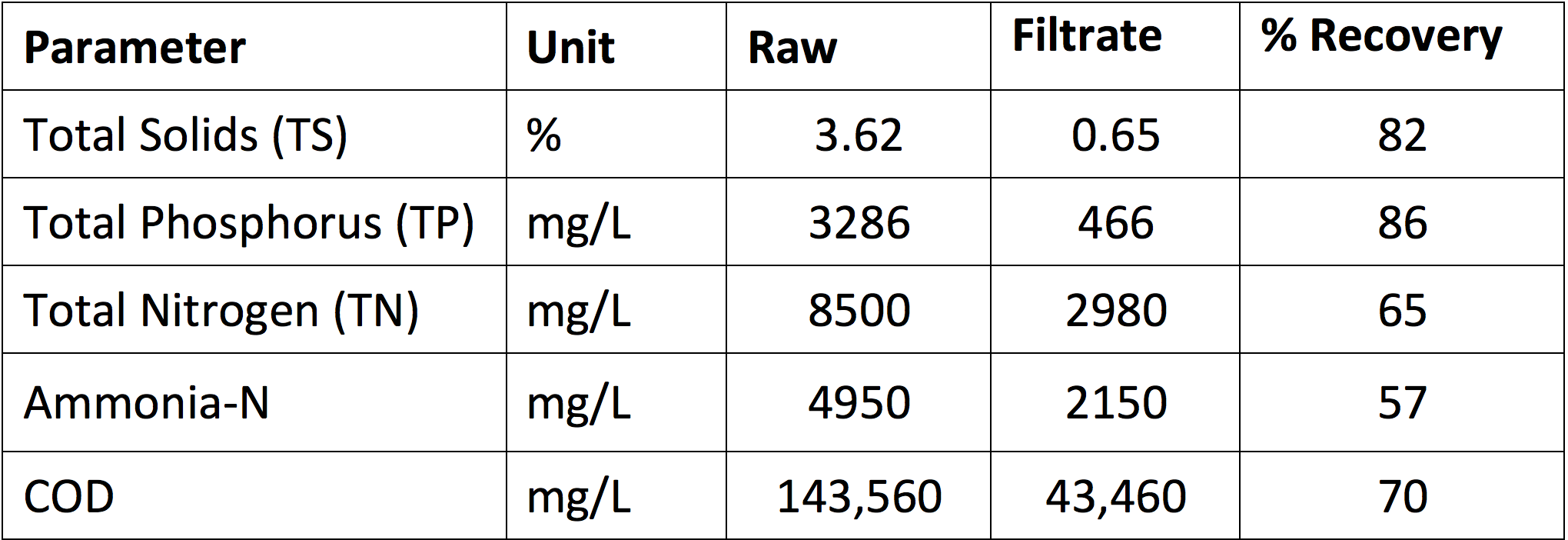

      Hog Farm Digestate Ringler Farm Chart.png
       Anaerobic digestate treatment: Filtrate (left), Feed (center), and concentrate (right)

      Anaerobic digestate treatment: Filtrate (left), Feed (center), and concentrate (right)

      Algal Bloom solutions

      150917 Algal Bloom Solution.jpg
